IVR ROUTING DNIS REPORTS


The IVR Routing DNIS reports are listed below:


• DNIS Performance by Period
• DNIS Group Performance by DNIS
• DNIS Group Performance by DNIS by Period
• DNIS Group Performance by Period






IVR Routing DNIS Performance by Period

The IVR Routing DNIS Performance by Period report provides DNIS related performance statistics for the DNIS you specify over the selected time period. (See Figure 182.)

The IVR Routing DNIS Performance by Period report provides the following information:

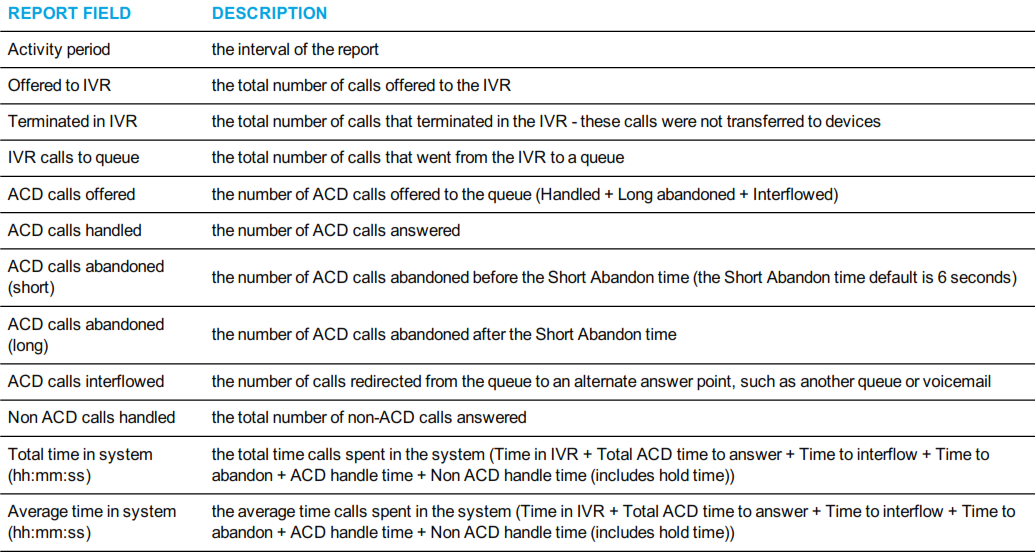

image2016-10-5 16:14:49.png

image2016-10-5 16:15:8.png

image2016-10-5 16:15:25.png

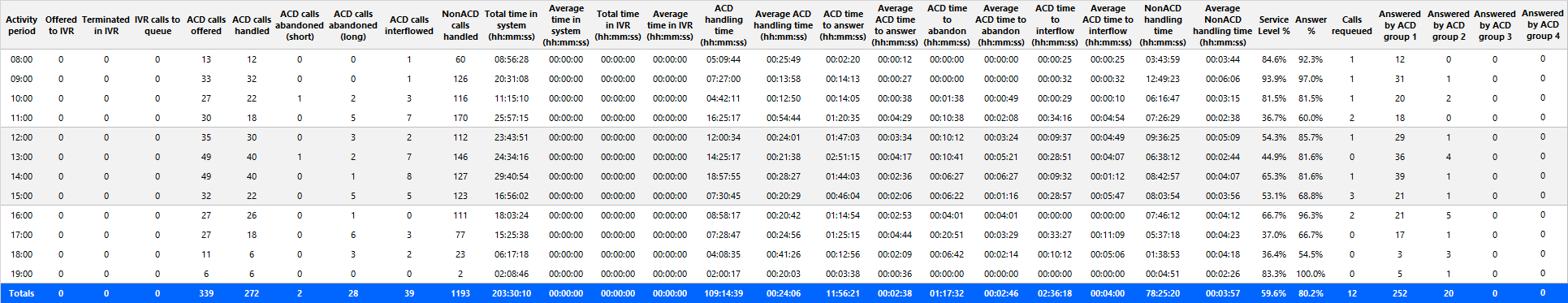

image2016-10-5 16:15:43.png

Figure 182: IVR Routing DNIS Performance by Period










IVR Routing DNIS Group Performance by DNIS

The IVR Routing DNIS Group Performance by DNIS report provides DNIS group related performance statistics for the DNIS group you specify. (See Figure 183.)

The IVR Routing DNIS Group Performance by DNIS report provides the following information:

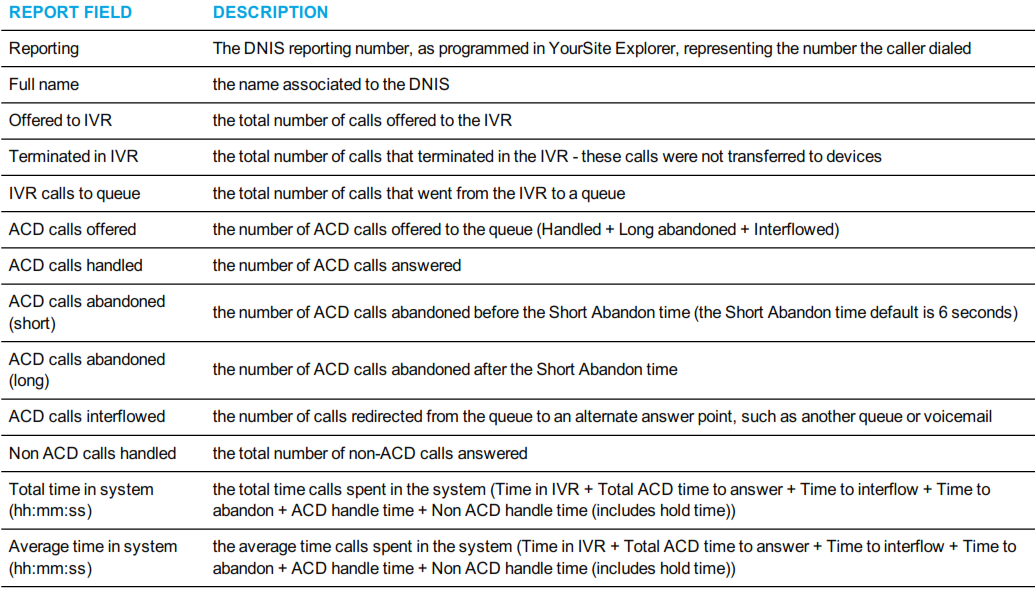

image2016-10-5 16:16:32.png

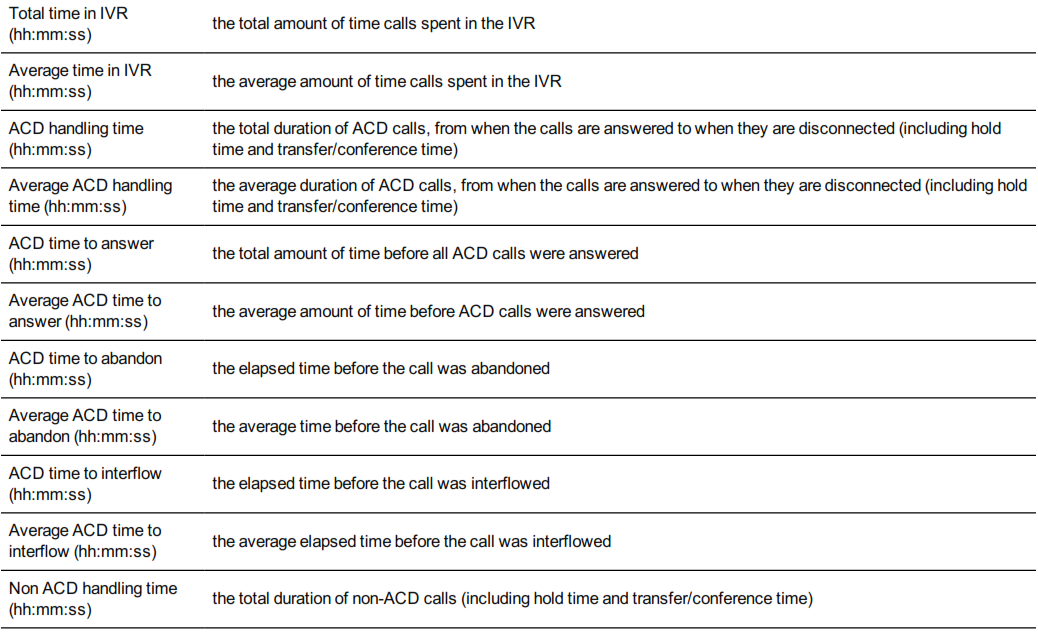

image2016-10-5 16:16:54.png

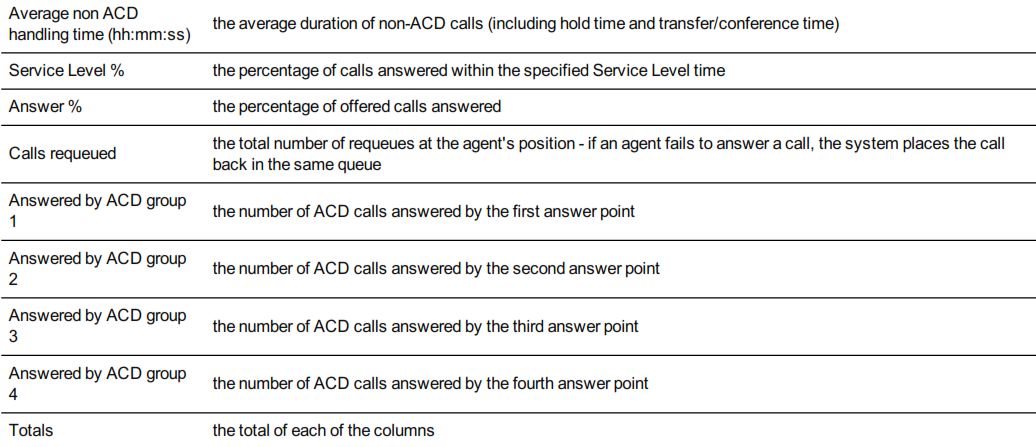

image2016-10-5 16:17:12.png





image2016-10-5 16:17:26.png

Figure 183: IVR Routing DNIS Group Performance by DNIS











IVR Routing DNIS Group Performance by DNIS by Period

The IVR Routing DNIS Group Performance by DNIS by Period report provides DNIS group related performance statistics for the DNIS group you specify for selected time periods. (See Figure 184.)

The IVR Routing DNIS Group Performance by DNIS by Period report provides the following information:

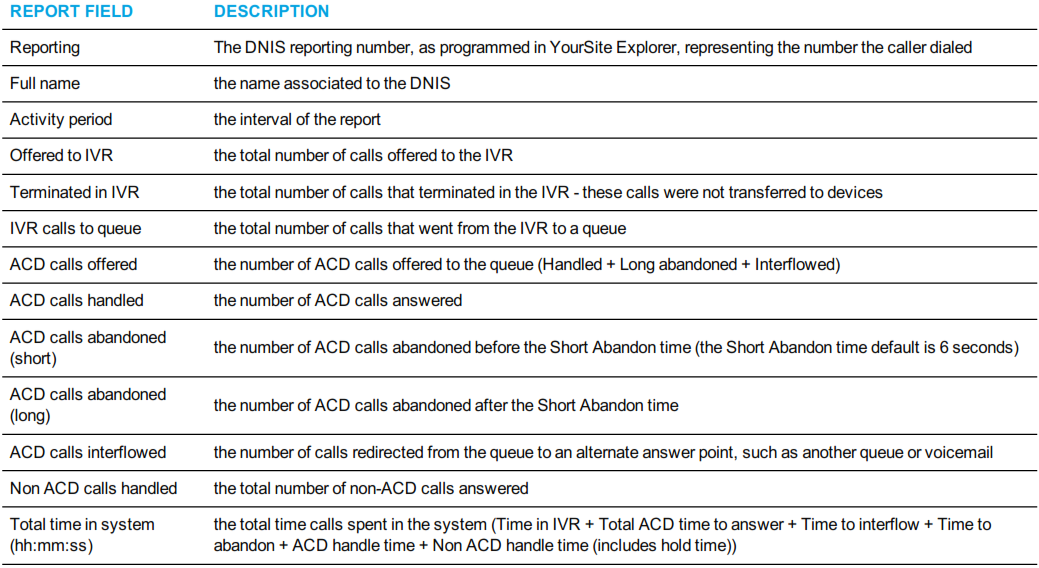

image2016-10-5 16:18:21.png

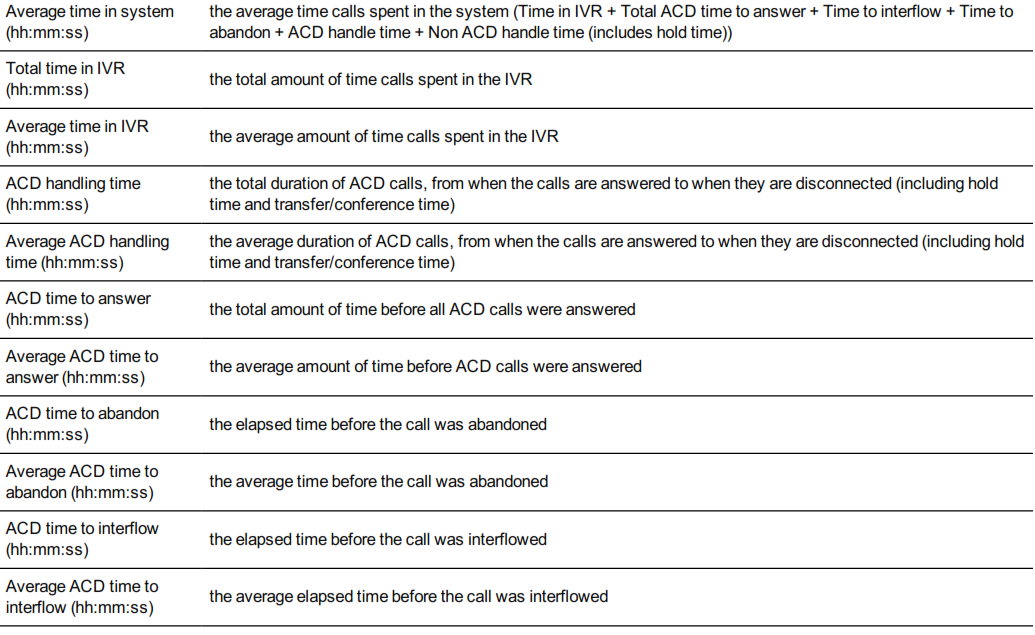

image2016-10-5 16:18:42.png

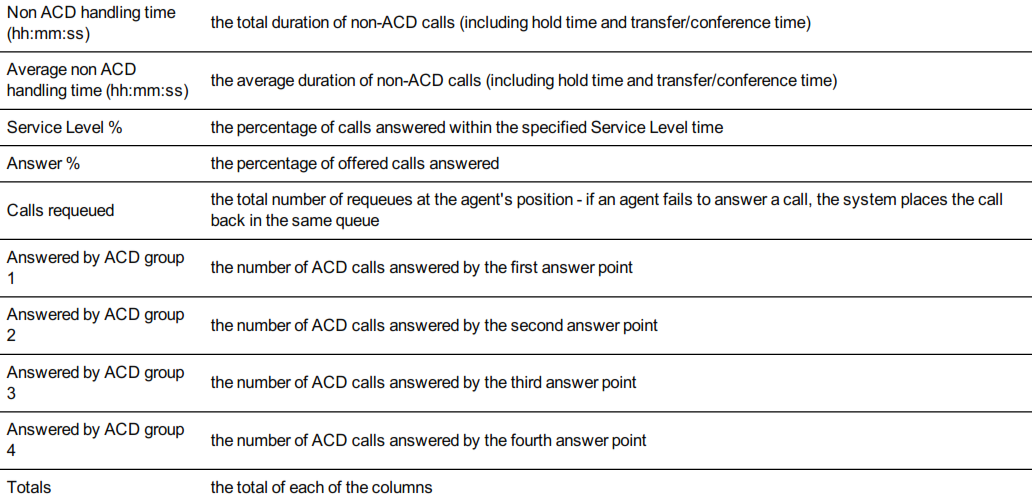

image2016-10-5 16:19:0.png

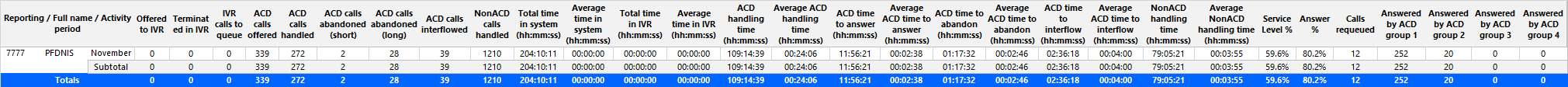

image2016-10-5 16:19:12.png

Figure 184: IVR Routing DNIS Group Performance by DNIS by Period











IVR Routing DNIS Group Performance by Period

The IVR Routing DNIS Group Performance by Period report provides DNIS group related performance statistics for the DNIS group you specify over the selected time period. (See Figure 185.)

The IVR Routing DNIS Group Performance by Period report provides the following information:

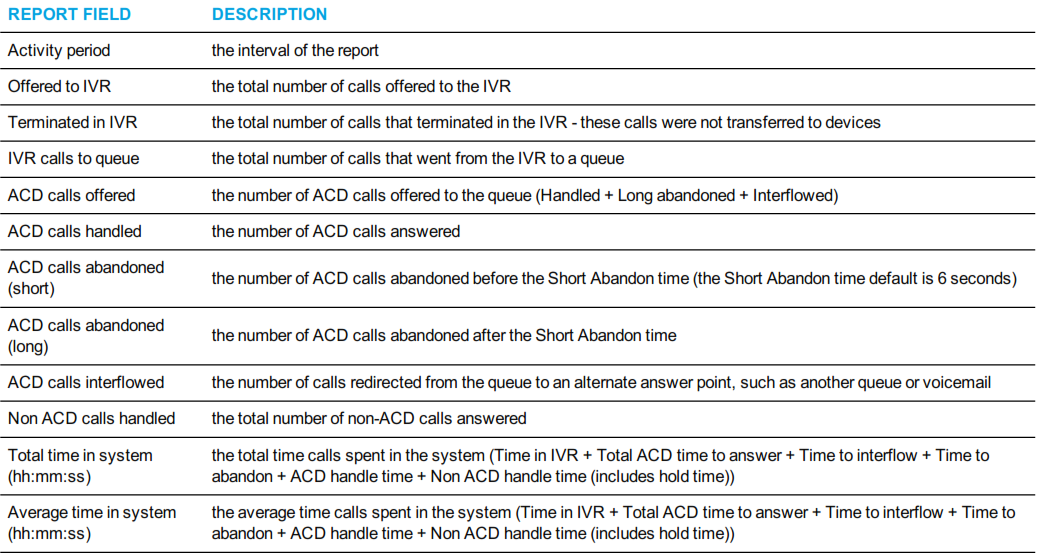

image2016-10-5 16:19:58.png

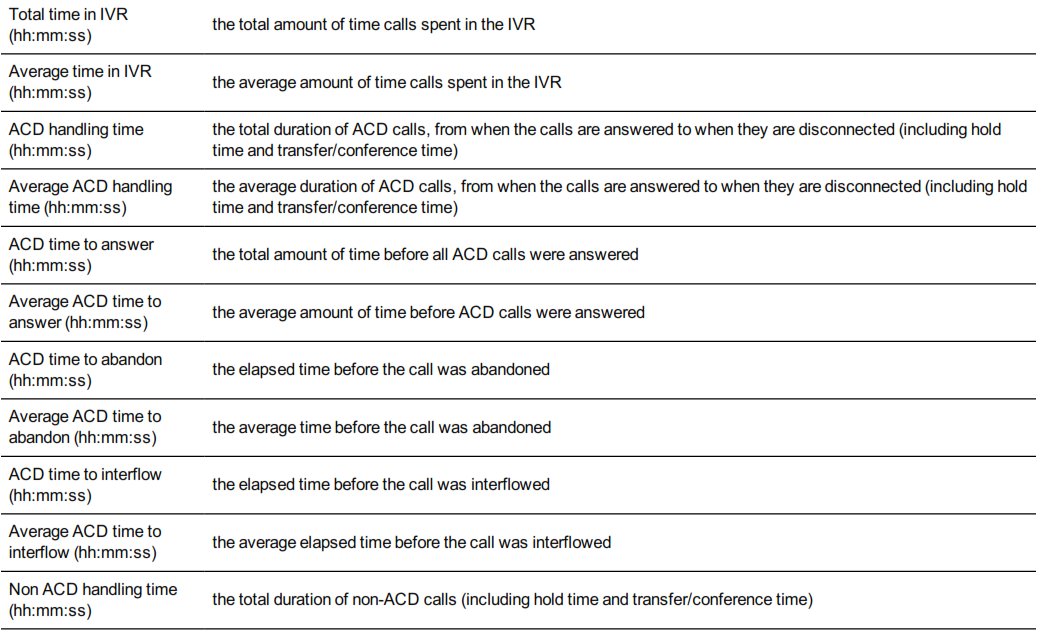

image2016-10-5 16:20:18.png

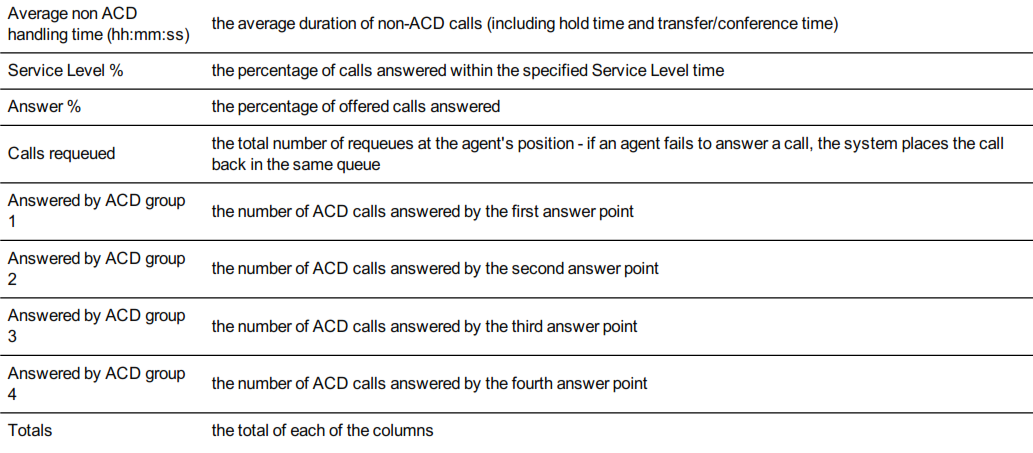

image2016-10-5 16:20:34.png

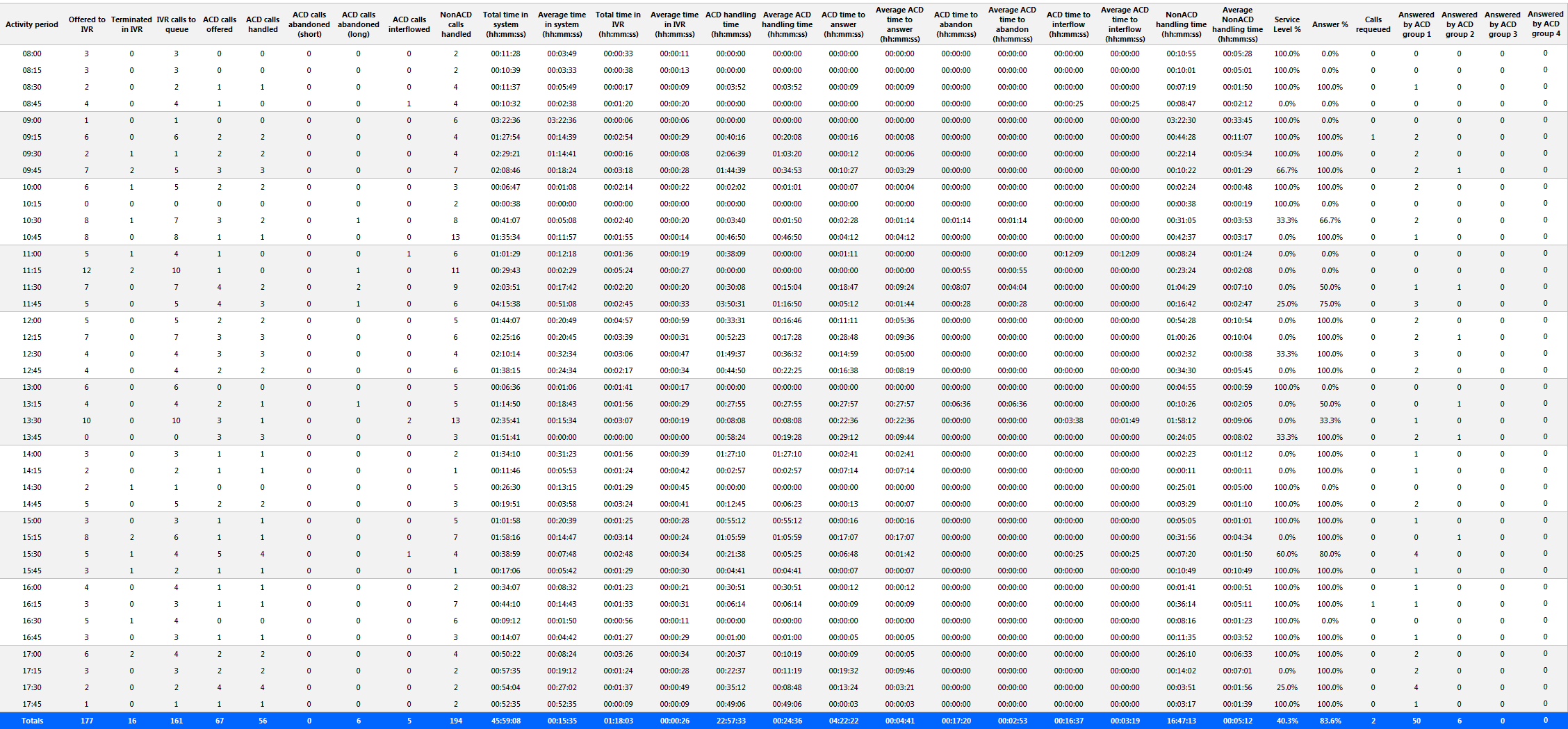

image2016-10-5 16:20:46.png

Figure 185: IVR Routing DNIS Group Performance by Period
