IVR ROUTING CALLBACK REPORTS


The IVR Routing Callback reports are listed below:

• Callback Queue Performance by Agent
• Callback Queue Performance by Period
• Callback Queue Group Performance by Agent
• Callback Queue Group Performance by Period
• Callback Queue Group Performance by Queue






IVR Routing Callback Queue Performance by Agent

The IVR Routing Callback Queue Performance by Agent report shows the callback performance of each agent and enables comparison of one agent's performance relative to other agents. (See Figure 175.)

The IVR Routing Callback Queue Performance by Agent report provides the following information:

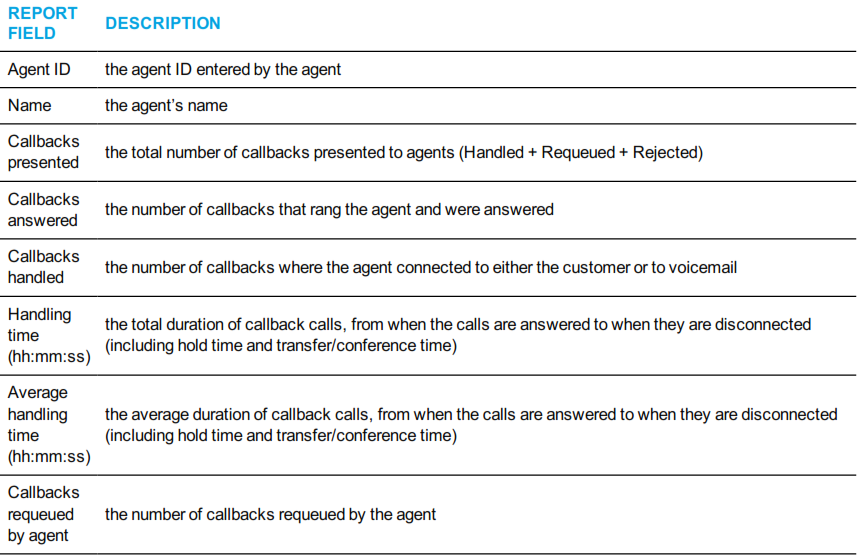

image2016-10-5 16:25:35.png







Figure 175: IVR Routing Callback Queue Performance by Agent











IVR Routing Callback Queue Performance by Period

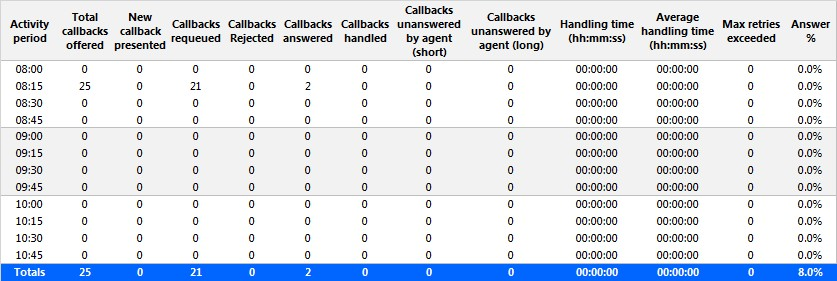

The IVR Routing Callback Queue Performance by Period report provides callback traffic level highs and lows, and the service level provided during these time periods. Callback activity is shown across 15-, 30-, or 60-minute intervals for the shift duration and days you specify. (See Figure 176.)

The IVR Routing Callback Queue Performance by Period report provides the following information:

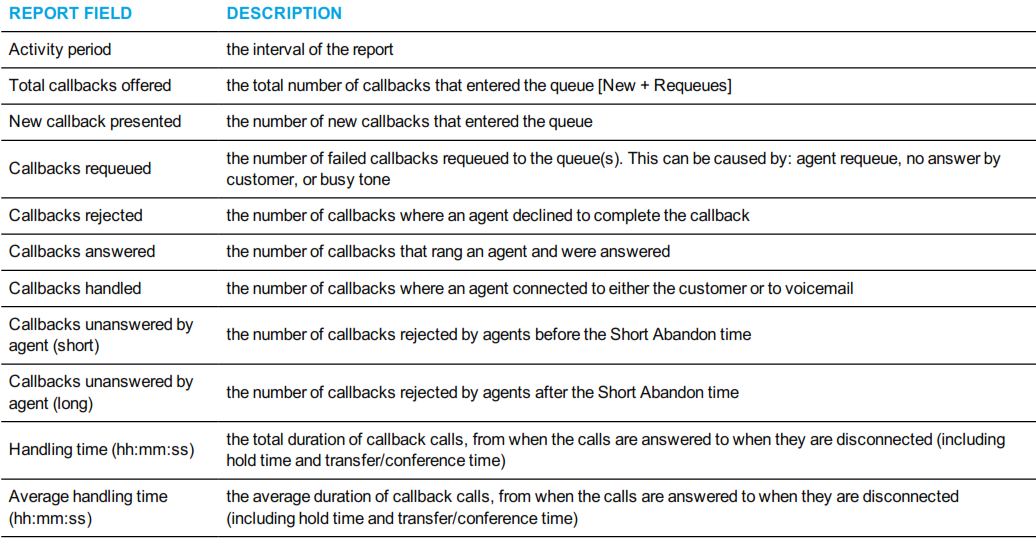

image2016-10-5 16:26:40.png

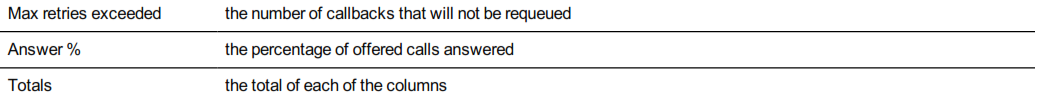

image2016-10-5 16:27:12.png







Figure 176: IVR Routing Callback Queue Performance by Period










IVR Routing Callback Queue Group Performance by Agent

The IVR Routing Callback Queue Group Performance by Agent report shows the callback performance of each agent and enables comparison of one agent's performance relative to other agents. (See Figure 177.)

The IVR Routing Callback Queue Group Performance by Agent report provides the following information:

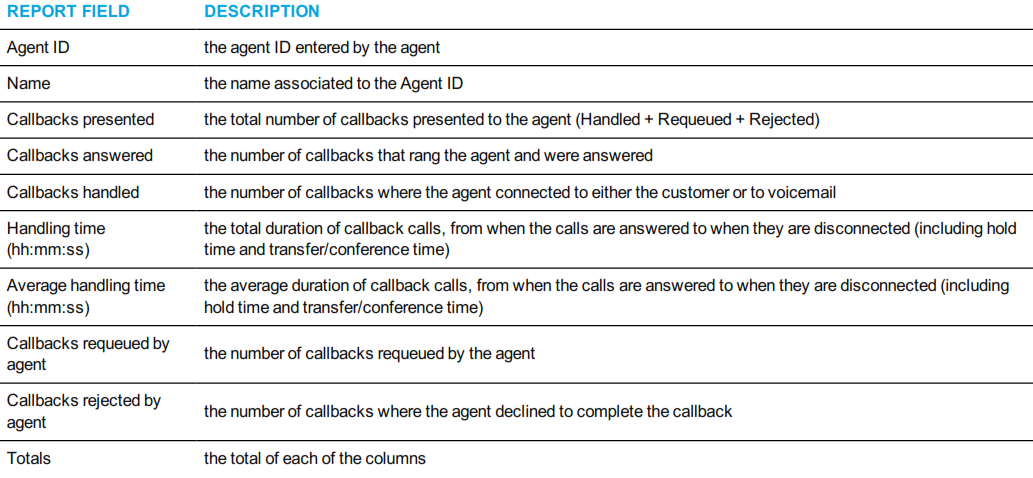

image2016-10-5 16:28:1.png





Figure 177: IVR Routing Callback Queue Group Performance by Agent











IVR Routing Callback Queue Group Performance by Period

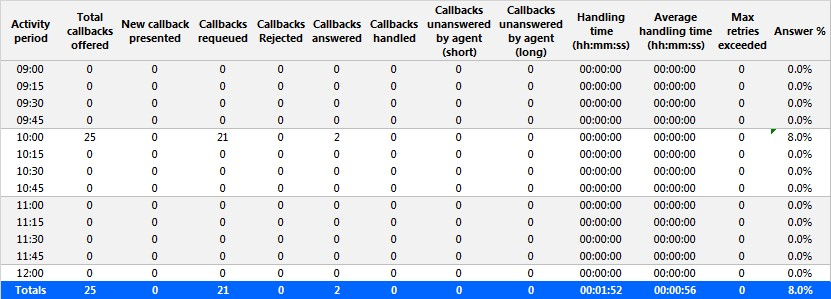

The IVR Routing Callback Queue Group Performance by Period report provides callback traffic level highs and lows for the specified queue group, and the service level provided during these time periods. Callback activity is shown across 15-, 30-, or 60-minute intervals for the shift duration and days you specify. (See Figure 178.)

The IVR Routing Callback Queue Group Performance by Period report provides the following information:

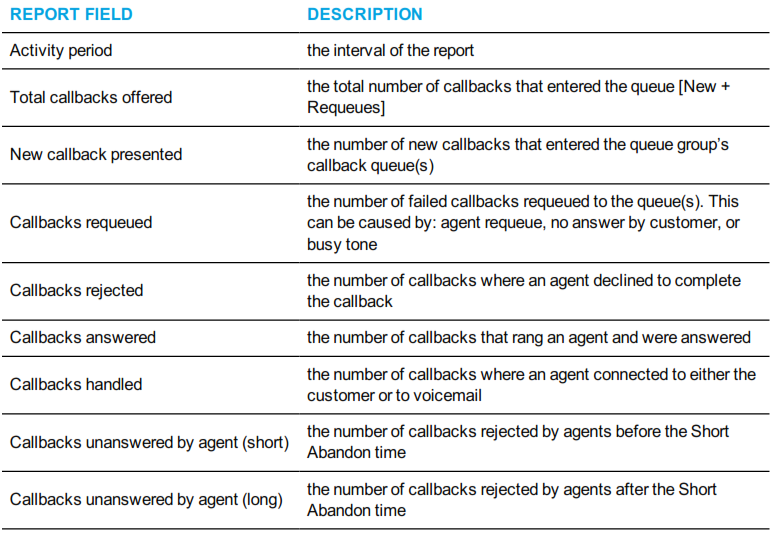

image2016-10-5 16:29:10.png

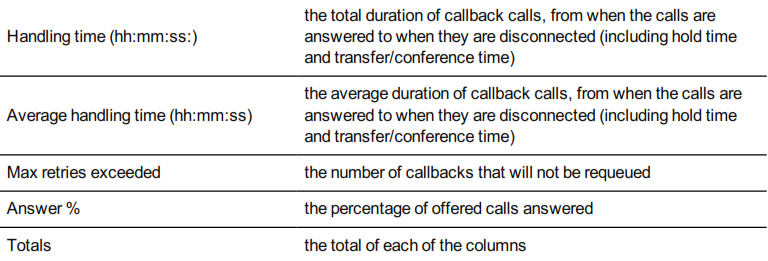

image2016-10-5 16:29:49.png







Figure 178: IVR Routing Callback Queue Group Performance by Period











IVR Routing Callback Queue Group Performance by Queue

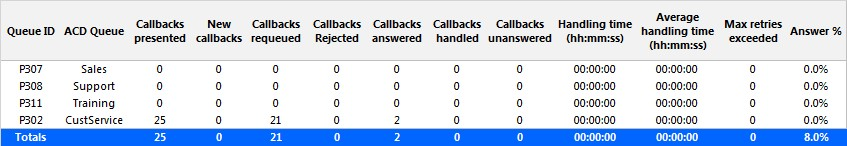

The IVR Routing Callback Queue Group Performance by Queue report shows performance statistics for the specified queue group over the selected time period. (See Figure 179.)

The IVR Routing Callback Queue Group Performance by Queue reports provides the following information:

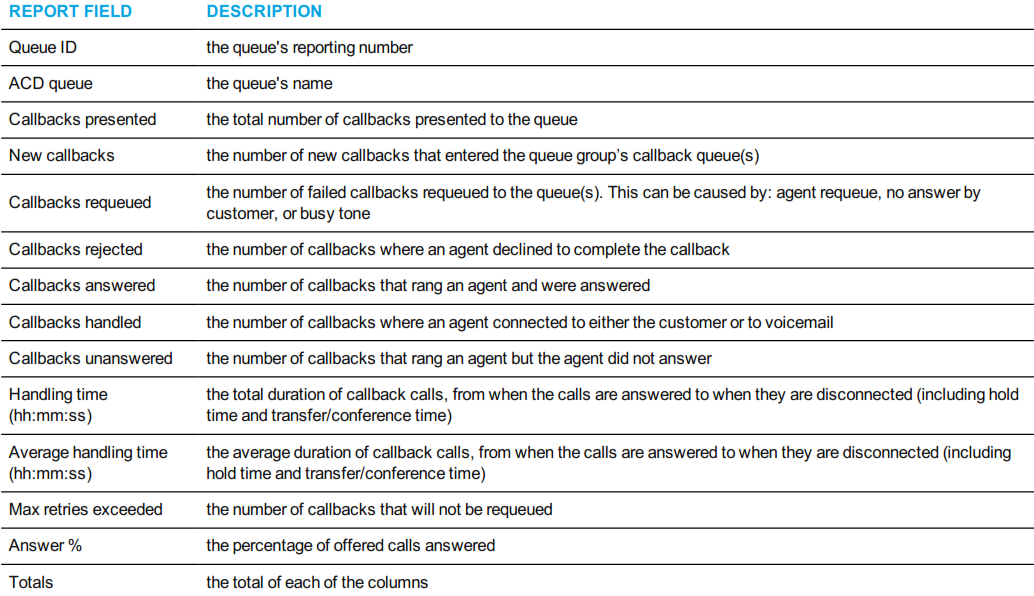

image2016-10-5 16:30:38.png






Figure 179: IVR Routing Callback Queue Group Performance by Queue
