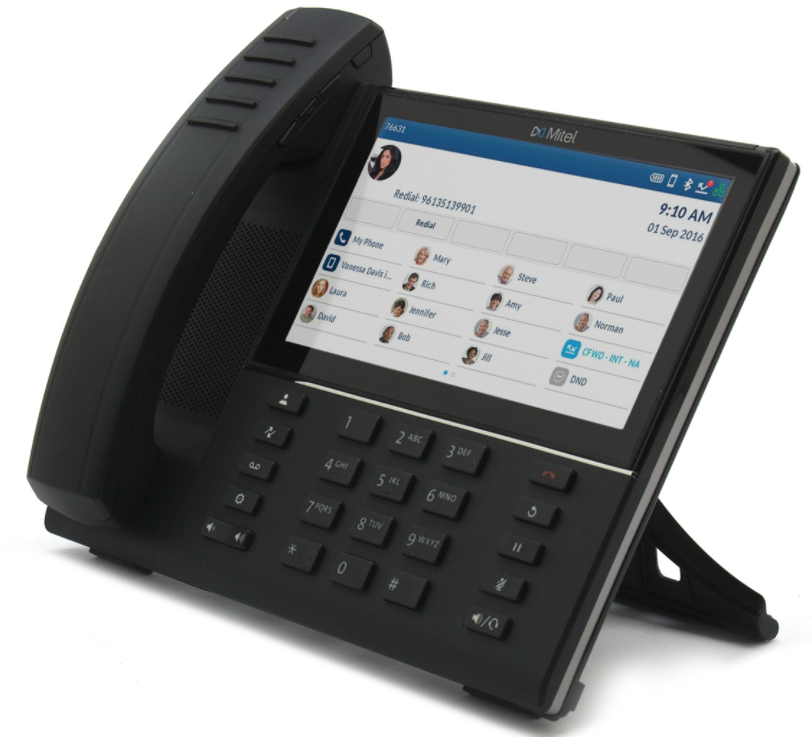

6940 IP Phone

Powerful, desktop IP phone designed for the Executive user



 The MiVoice 6940 is designed for the executive user who demands an exceptional device that meets their demanding communication needs.  MobileLink enables the users’ mobile phone to pair directly with the 6940 using the embedded Bluetooth 4.1interface to deliver access to many of the features of the mobile phone on the desk phone, making the MiVoice 6940 an invaluable companion to the mobile user’s smart phone.  The 6940 affords users the flexibility to tailor the phone for specific needs through a broad array of end user installable add-on accessories.  The 6940 is designed from the ground up to provide an exceptional HD audio experience via its unique speech optimized cordless handset, enhance full-duplex speakerphone and support for both Bluetooth and USB headsets.  Supporting today’s high speed networks through dual Gigabit Ethernet ports, the 6940 offers an exceptionally large 7” color touch display, HD wideband audio with advanced audio processing, ninety-six programmable Personal keys and six context sensitive soft keys.

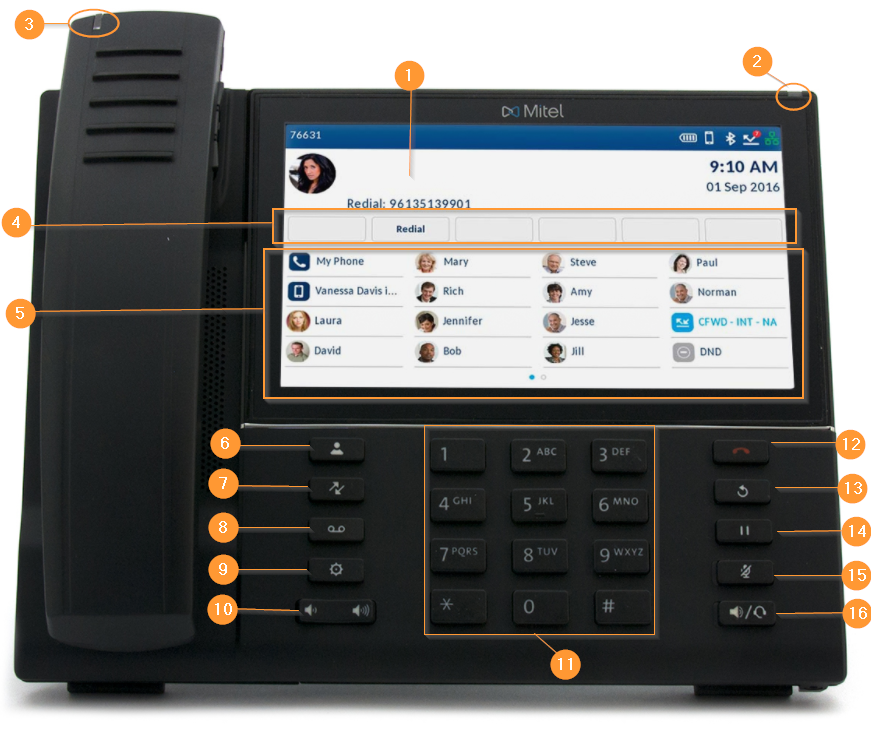

Phone Keys

Reference #

Features

Description

1

LCD Touchscreen

UI navigation is performed using the LCD touchscreen. On the Home screen, swipe left and right on the programmable key area to access additional key pages. In application and settings menu, swipe up and down to scroll through lists. To select an item, tap the respective item on screen.

2 & 3

Ring/Message Indicator

Flashes to signal an incoming call and to indicate a message waiting in your voice mailbox.

4

Soft Keys

Six state-sensitive softkeys

5

Programmable Keys

Up to 96 programmable keys, a maximum of six programmable keys per page

6

Contacts

Displays a list of you contacts

7

Call History

Displays a list of missed, outgoing and received calls

8

Voicemail

Provides access to your voicemail service.

9

Settings

Provides services and options that allow you to customize you phone.

10

Volume

Adjust the volume for the ringer, handset, speaker, and headset

11

Keypad

Use to dial

12

Goodbye

Ends active calls and used for existing menus

13

Redial

Displays an active call on hold or resumes a call from hold

14

Hold

Places an active call on hold or resumes a call from hold

15

Mute

Mutes/unmutes all outgoing audio from headset, handset or speaker

16

Speaker/Headset

Toggles the phone's audio between speaker and headset. If you are using a DHSG/EHS headset, ensure that the headset jack adapter is removed from the headset port.  Warning! The headset port is for headset use only. Plugging any other devices into this port may cause damage to the phone and will void your warranty.


Phone Features

  • 7” (800x480 pixel) Touchscreen LCD

  • 2 x GigE ethernet ports

  • Built in Bluetooth 4.1 support

  • 96 (16 x 6) programmable keys

  • 6 softkeys

  • Mitel Hi-Q Audio Technology

  • Hearing aid compatible (HAC) handset

  • Codecs (not all codecs supported by MiNet and SIP firmware): G.711, G.729, G.722, G.722.1 (MiNet only ); G.726, iLBC AMR, AMR-WB (G.722.2) (SIP only)

  • Powered USB 2.0 Host port (500mA)

  • Sidecar expansion port

  • PoE Class 3 with automatic PoE Class

Integration and Connectivity

Integration and Connectivity

  • Dual 10/100/1000 Mbps Ethernet ports (LAN/PC)

  • MobileLink

− Mobile pairing via BT

− Mobile Call Audio via desk phone

− Mobile Contact Sync

− Mobile Charging (USB port)

  • Support for Mitel Teleworker Solution, Automatic Call Distribution (ACD) agent and supervisor, hot desking, and resiliency

  • Support for use with Mitel MiCollab Client

  • Multiple-languages support: English, French, German, Italian, Portuguese, Spanish and Dutch (downloadable language packs for SIP)

  • Secure encrypted voice communication

  • Quality of Service support –IEEE 802.1 p/Q VLAN and priority tagging

  • IEEE 802.1x authentication support

  • Bluetooth 4.1 wireless interface

Flexible Headset Options

The MiVoice 6940 IP Phone offers native USB and Bluetooth headset support.

Powering

  • Designed for power conservation

  • Accepts standards-based (IEEE 802.3af)Power over Ethernet (PoE)

  • PoE Class 3 with automatic PoE Class change on Expansion Module installation

  • Supports local powering via 48VDC PoE injector or 48VDC wall adapter

Power Consumption

  • Idle: 1.8w Typical: 9.0w
