6930 IP Phone

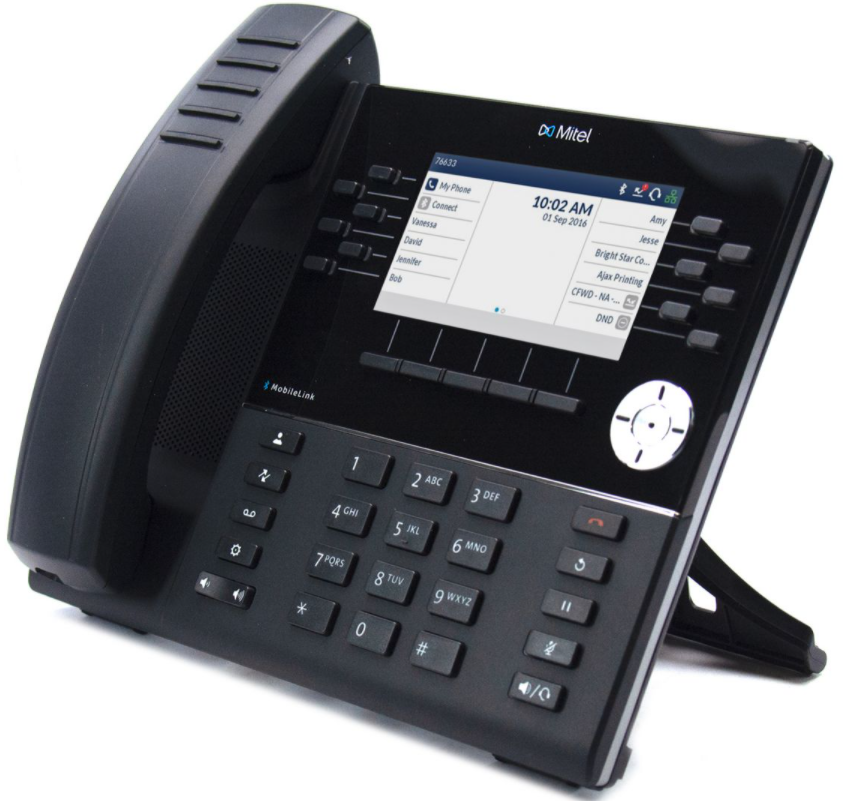

The MiVoice 6930 IP Phone is a powerful, customizable IP phone designed for the power user.




Ideal for power users who require a phone that can be tailored to their specific communication needs. Designed from the ground up to provide an exceptional HD audio experience via its speech optimized handset, enhanced full-duplex speakerphone and support for Bluetooth, USB and Analog handsets.

Mobile device integration seamlessly marries your mobile phone call audio and contact information with the MiVoice 6930. Calls to your mobile phone can be answered on the MiVoice 6930 just like any other call, leveraging the superior audio performance and ergonomics of the 6930 IP Phone. Mobile phone contacts are automatically synchronized with the MiVoice 6930 allowing access to the same contacts on either device. Additionally a powered USB port suitable for charging a mobile phone is also built into the MiVoice 6930.

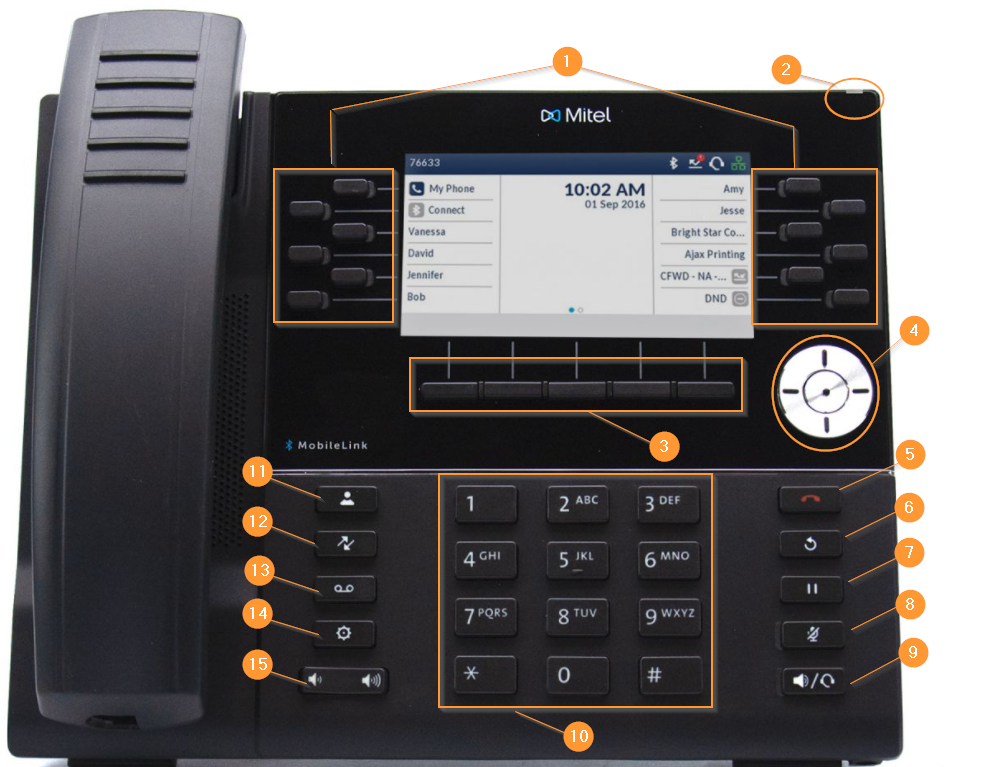

Phone Keys

Reference #

Features

Description

1

Programmable Keys

Up to 72 programmable keys, a maximum of six programmable keys per page

2

Ring/Message Indicator

Flashes to signal an incoming call and to indicate a message waiting in your voice mailbox.

3

Soft Keys

Four state-sensitive softkeys

4

Navigation/Select

Multi-directional navigation keys are used to navigate through the phone menu. Press the center button to select menu options and perform various actions.
On the home screen, the left and right navigation keys can be used to access the additional pages of the programmable keys.

5

Goodbye

Ends active calls and used for existing menus

6

Redial

Displays an active call on hold or resumes a call from hold

7

Hold

Places an active call on hold or resumes a call from hold

8

Mute

Mutes/unmutes all outgoing audio from headset, handset or speaker

9

Speaker/Headset

Toggles the phone's audio between speaker and headset. If you are using a DHSG/EHS headset, ensure that the headset jack adapter is removed from the headset port.  Warning! The headset port is for headset use only. Plugging any other devices into this port may cause damage to the phone and will void your warranty.




10

Keypad

Use to dial

11

Contacts

Provides access to your voicemail service

12

Call History

Displays a list of missed, outgoing and received calls

13

Voicemail

Provides access to your voicemail service.

14

Settings

Provides services and options that allow you to customize you phone.

15

Volume

Adjust the volume for the ringer, handset, speaker, and headset


Phone Features

  • 4.3” WQVGA (480x272) color TFT LCD display with brightness controls

  • Built-in-two-port, 10/100/1000 Gigabit Ethernet switch

  • Embedded Bluetooth 4.0

  • USB 2.0 port (500mA maximum)

  • Wideband handset

  • Enhanced wideband, full-duplex speakerphone for handsfree calls

  • Extensive support for peripherals and modules: Mitel S720 Bluetooth Speakerphone, Mitel Cordless Bluetooth Handset, Mitel Integrated DECT, Bluetooth, USB, DHSG/EHS, and wired analog headsets, M695 Color Programmable Key Module (PKM), and Mitel Wireless LAN Adapter

  • AC power adapter (sold separately)

  • 12 programmable, multi-function, self-labeling keys allowing up to 72 functions and five intuitive state sensitive softkeys

  • MobileLink support - seamless mobile integration using Bluetooth wireless technology

Integration and Connectivity

Integration and Connectivity

  • Dual 10/100/1000 Mbps Ethernet ports (LAN/PC)

  • MobileLink

– Mobile pairing via BT

– Mobile Call Audio via desk phone

– Mobile Contact Sync

– Mobile Charging (USB port)

  • Support for Mitel Teleworker Solution, Automatic Call Distribution (ACD) agent and supervisor, hot desking, and resiliency

  • Support for use with Mitel MiCollab Client

  • Multiple-languages support: English, French, German, Italian, Portuguese, Spanish and Dutch(downloadable language packs for SIP)

  • Secure encrypted voice communication

  • Quality of Service support –IEEE 802.1p/Q VLAN and priority tagging

  • IEEE 802.1x authentication support

  • Bluetooth 4.1 wireless interface

  • Powered USB 2.0 Host port (500mA)

  • Sidecar expansion port

  • Dedicated 4-pin modular headset port convertible to EHS/DHSG capable headset port

Flexible Headset Options

The MiVoice 6930 IP Phone offers native Bluetooth headset support as well as USB headset support and an innovative analog headset port that uniquely provides dual support for EHS/DHSG and modular 4-pin headset connections.

Users with wireless headsets that support EHS/DHSGcan connect directly to the 6930 using standard third party cables.

Powering

  • Designed for power conservation

  • Accepts standards-based (IEEE 802.3af)Power over Ethernet (PoE)

  • PoE Class 3 with automatic PoE Class change on Expansion Module installation

  • Supports local powering via 48VDC PoE injector or 48VDC wall adapter
