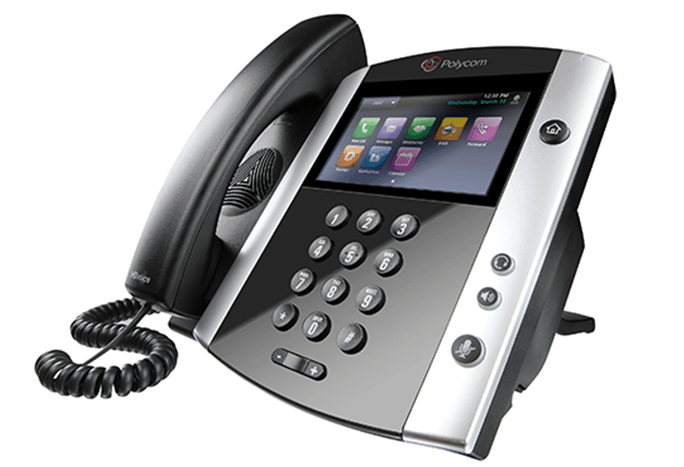

Polycom VVX 601 Business Media Phones


Premium business media phones delivering  best-in-class desktop productivity for busy corporate executives and managers.




Simplicity and ease of use

The Polycom VVX 600 Series is built for executives and managers who need a  powerful, yet intuitive, expandable office phone that helps them stay connected to lead  your organization. Founded on the behavior common to smartphones and tablets, the
intuitive gesture-based, multitouch user interface of the Polycom VVX 600 Series makes navigation easy and requires minimal training. With its combined ergonomic design, Polycom® HD Voice™ quality and a large, high-resolution color, multitouch screen, the
Polycom VVX 600 Series business media phone is ideal.

Further Reading

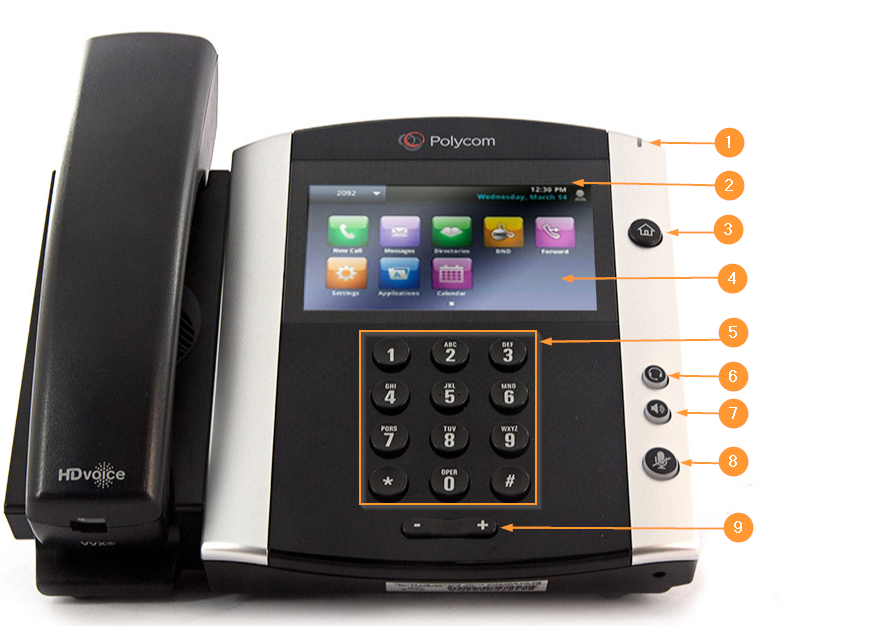

VVX 600 & 601 Hardware Feature Descriptions





Reference Number

Feature

Feature Description

1

Message Waiting Indicator

Flashes red to indicate when you have new messages.

2

Time/Date

Provides time, and full date

3

Home Key

Displays the Home screen from other screens and displays the Lines and Calls screen from the Home
screen.

4

User Interface

Touch screen interface allows for browsing through settings and applications

5

Dial pad

Enables you to enter numbers, letters, and special characters. You can also use the dial pad keys to select menu items that have index numbers.

6

Headset key

Enables you to place and receive calls through a headset.

7

Speakerphone key

Enables you to place and receive calls using the speakerphone.

8

Mute key

Mutes local audio during calls and conferences.

9

Volume keys

Adjust the volume of the handset, headset, speaker, and ringer.


Product specifications

User interface features

  • Gesture based, multitouch capable capacitive touch-screen

  • 4.3 in LCD (480 x 272) resolution

  • 16:9 aspect ratio

  • Screen saver and digital picture frame mode

  • On-screen virtual keyboard

  • Voicemail and video mail support

  • Dual USB ports (2.0 compliant) for media and storage applications

  • Integrated Bluetooth® 2.1 EDR

  • Adjustable base height

  • Unicode UTF-8 character support.

  • Multilingual user interface including

  • Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

Call handling features

  • 16 lines (registrations)

  • Shared call/bridged line appearance

  • Busy lamp field

  • Flexible line appearance (1 or more line keys can be assigned for each line extension)

  • Distinctive incoming call treatment/call waiting

  • Call timer and call waiting

  • Call transfer, hold, divert (forward), pickup

  • Called, calling, connected party information

  • Local 3-way audio conferencing

  • 1-touch speed dial, redial

  • Remote missed call notification

  • Do not disturb function

  • Electronic hook switch capable

  • Local configurable digit map/dial plan

Network and provisioning

  • SIP protocol support

  • SDP

  • IETF SIP (RFC 3261 and companion RFCs)

  • Two-port gigabit Ethernet switch

  • - 10/100/1000Base-TX across LAN and PC ports
    - Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
    - Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation

  • Manual or dynamic host configuration protocol (DHCP) network setup

  • Time and date synchronization using SNTP

  • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments

  • Support for Polycom Zero Touch Provisioning

  • Provisioning and call server redundancy supported QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and Diffserv/DSCP

  • VLAN – CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery

  • Network address translation support for static configuration and “Keep-Alive” SIP signaling

  • RTCP and RTP support

  • Event logging

  • Syslog

  • Hardware diagnostics

  • Status and statistics reporting

  • IPv4 and IPv6

  • TCP

  • UDP

  • DNS-SRV

Security

  • 802.1X authentication and EAPOL

  • Media encryption via SRTP

  • Transport layer security

  • Encrypted configuration files

  • Digest authentication

  • Password login

  • Support for URL syntax with password for boot server address

  • HTTPS secure provisioning

  • Support for signed software executables

Power

  • Built-in auto-sensing IEEE 802.3af Power over Ethernet (Class 4). Backwards compatibility with IEEE 802.3af.

Approvals

  • Argentina CNC

  • South Africa ICASA

  • Saudi Arabia CIT

  • India TEC

  • Japan MIC/VCCI Class B

  • Malaysia SIRIM

  • Israel MOC

  • Singapore IDA

  • Taiwan NCC*

  • Mexico NOM-121

  • FCC Part 15 (CFR 47) Class B

  • ICES-003 Class B

  • EN55022 Class B

  • CISPR22 Class B

  • VCCI Class B

  • EN55024

  • EN61000-3-2; EN61000-3-3

  • NZ Telepermit

  • Korea KC

  • UAE TRA

  • Russia CU

  • Brazil ANATEL*

  • Australia RCM

  • ROHS compliant

  • China CCC *

*Planned future compliance
