The Traffic Trunk reports are as follows:
• Trunk Busy Hour Traffic by Day of Week
• Trunk Traffic by Period
• Trunk Traffic Usage by Day of Week
• Trunk Group Outgoing Busy Hour Traffic by Day of Week
• Trunk Group Outgoing Traffic by Period
• Trunk Group Outgoing Traffic Usage by Day of Week
Trunk Busy Hour Traffic by Day of Week
The Trunk Busy Hour Traffic by Day of Week report shows the trunk's busiest hour for each day of the week. (See Figure 197.)

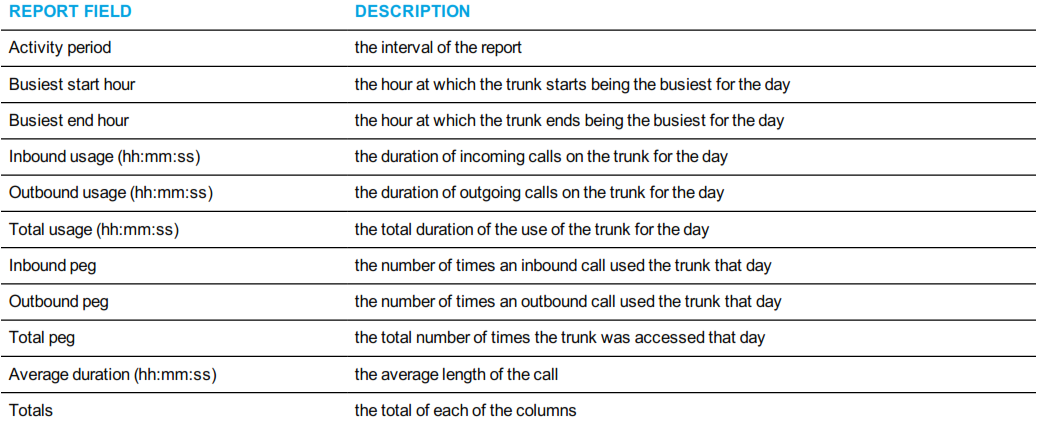

The Trunk Busy Hour Traffic by Day of Week report provides the following information:

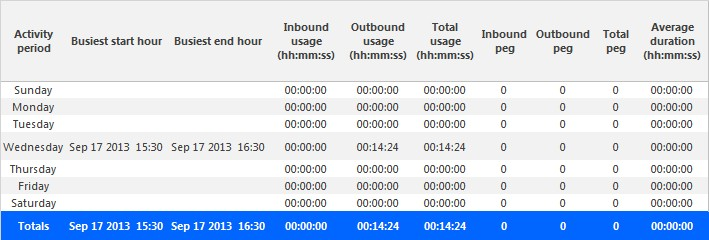

Figure 197: Trunk Busy Hour Traffic by Day of Week
Trunk Traffic by Period
The Trunk Traffic by Period report shows the trunk activity for the shift duration and day(s) you specify. (See Figure 198.)

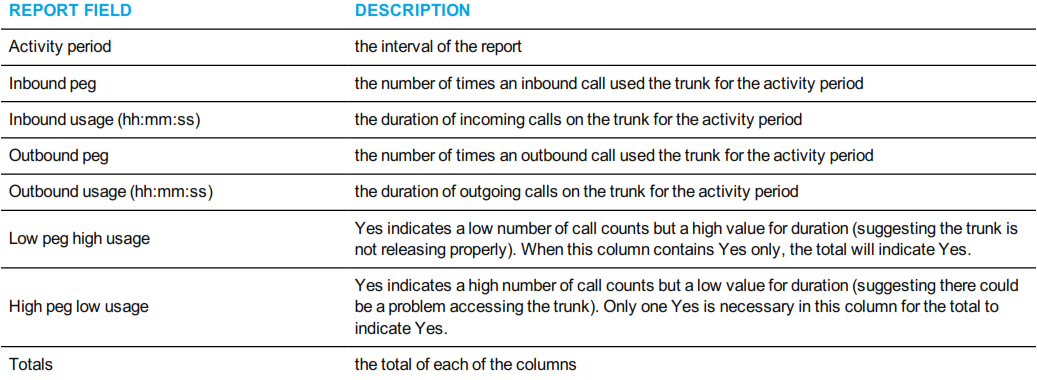

The Trunk Traffic by Period report provides the following information:

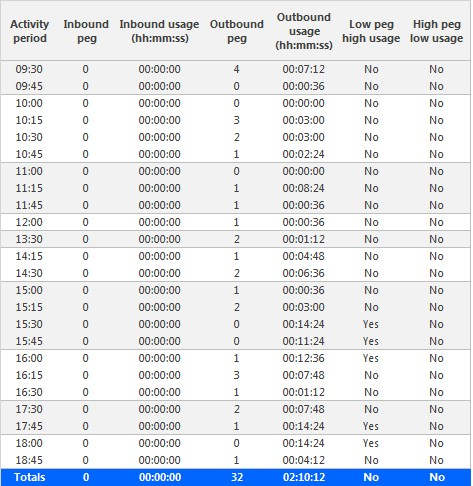

Figure 198: Trunk Traffic by Period
Trunk Traffic Usage by Day of Week
The Trunk Traffic Usage by Day of Week report shows the use of the trunk across 15-, 30-, or 60-minute intervals for each day of the week. (See Figure 199.)

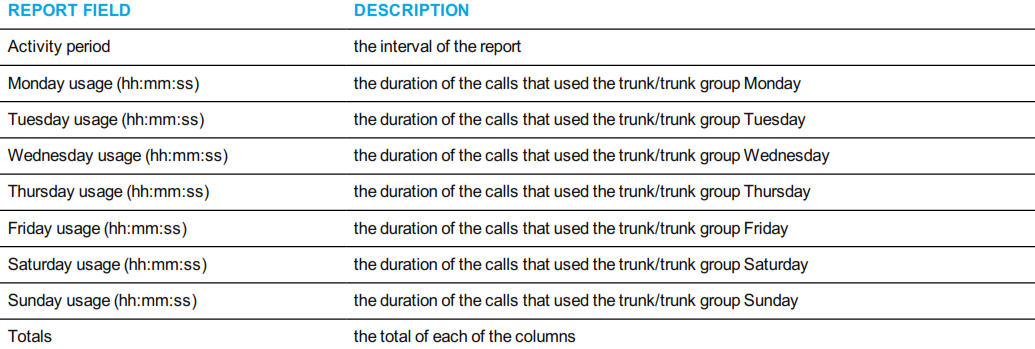

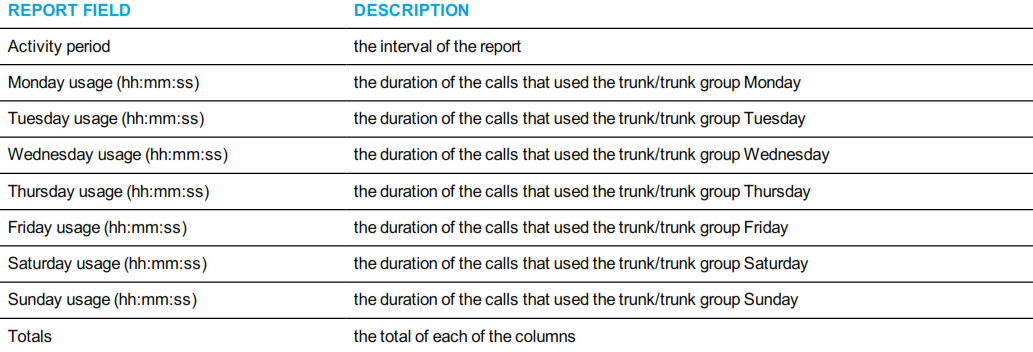

The Trunk Traffic Usage by Day of Week report provides the following information:

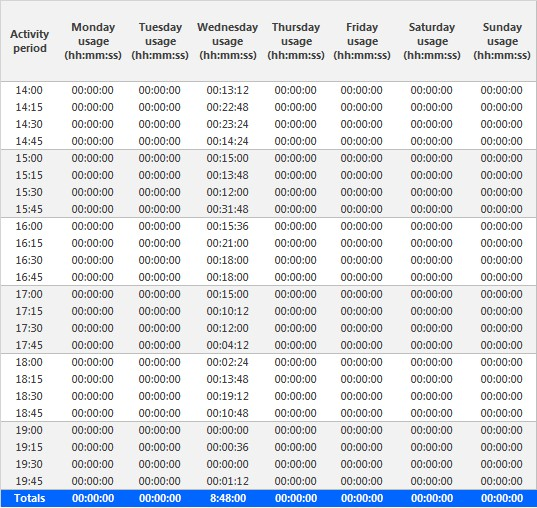

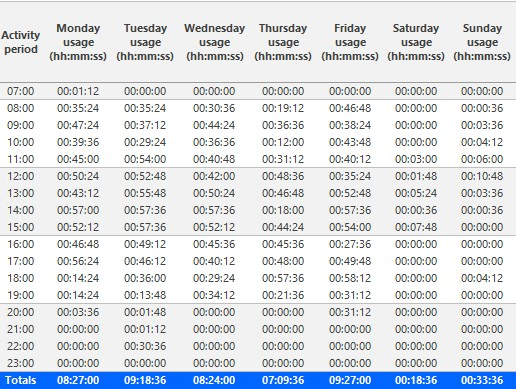

Figure 199: Trunk Traffic Usage by Day of Week
Trunk Group Outgoing Busy Hour Traffic by Day of Week
The Trunk Group Outgoing Busy Hour Traffic by Day of Week report shows the outgoing trunk's busiest hour for each day of the week. (See Figure 200.)

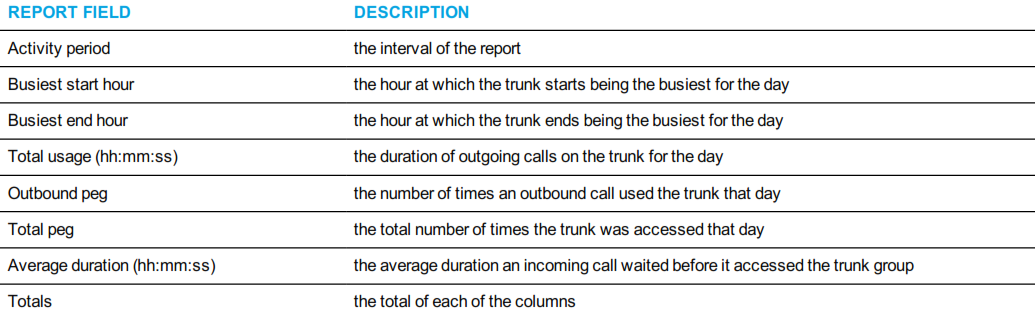

The Trunk Group Outgoing Busy Hour Traffic by Day of Week report provides the following information:

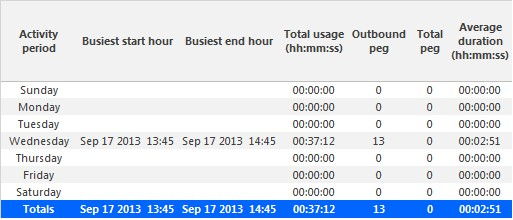

Figure 200: Trunk Group Outgoing Busy Hour Traffic by Day of Week
Trunk Group Outgoing Traffic by Period

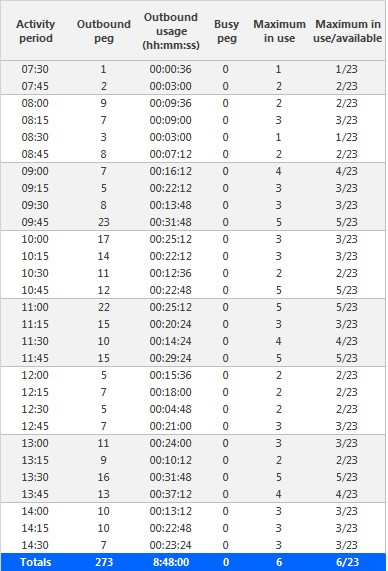

The Trunk Group Outgoing Traffic by Period report shows the outgoing trunk activity for the shift duration and day(s) you specify. (See Figure 201.)

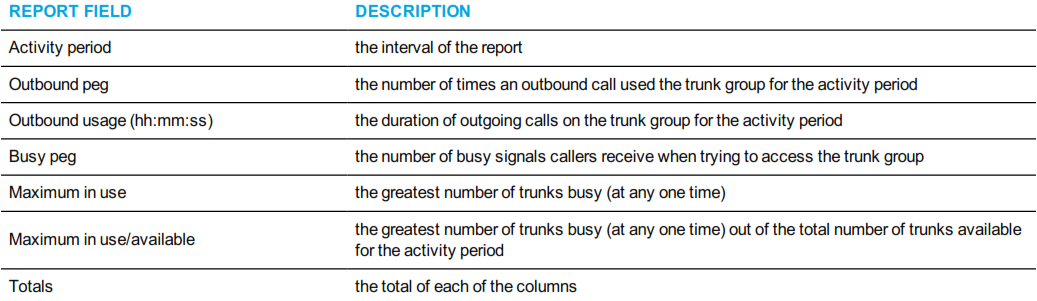

The Trunk Group Outgoing Traffic by Period report provides the following information:
Figure 201: Trunk Group Outgoing Traffic by Period
Trunk Group Outgoing Traffic Usage by Day of Week
The Trunk Group Outgoing Traffic Usage by Day of Week report shows the outgoing trunk usage across each day of the week. (See Figure 202.)
The Trunk Group Outgoing Traffic Usage by Day of Week report provides the following information:
Figure 202: Trunk Group Outgoing Traffic Usage by Day of Week
