The Traffic Route reports are listed below:
• Route Plan Traffic by Period
• Route List Traffic by Period
• Route Traffic by Period
Route Plan Traffic by Period
The Route Plan Traffic by Period report shows the route plan activity for the shift duration and day(s) you specify. A route plan determines where call traffic is directed, based on the time of day and day of week. (See Figure 194.)

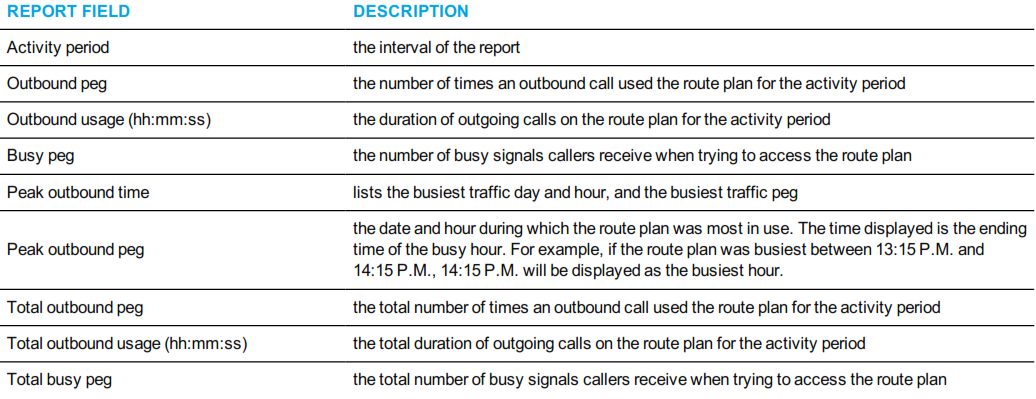

The Route Plan Traffic by Period report provides the following information:

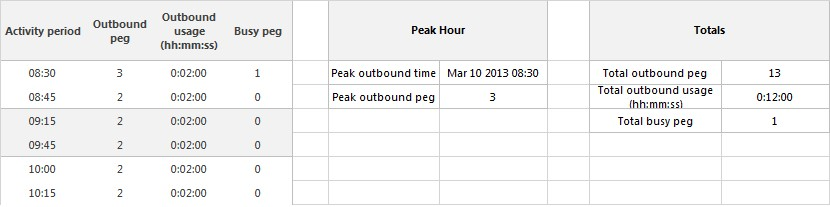

Figure 194: Route Plan Traffic by Period
Route List Traffic by Period
The Route List Traffic by Period report shows the route list activity for the shift duration and day(s) you specify. A route list determines where call traffic is directed, based on a prioritized list of routes. (See Figure 195.)

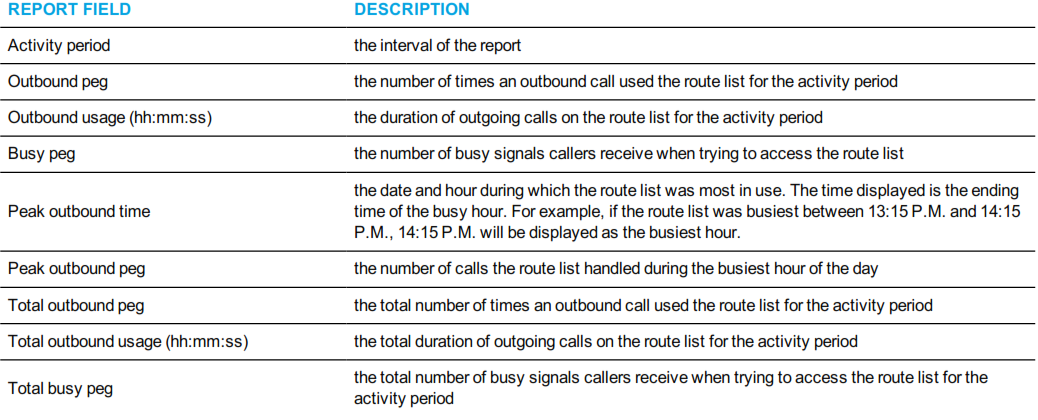

The Route List Traffic by Period report provides the following information:

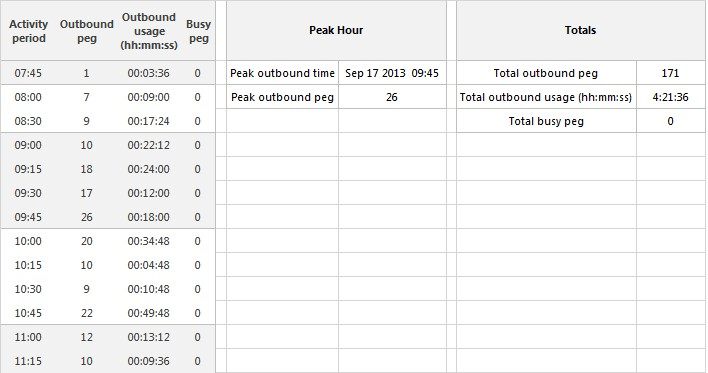

Figure 195: Route List Traffic by Period
Route Traffic by Period report
The Route Traffic by Period report shows the route activity for the shift duration and day(s) you specify. (See Figure 196.)

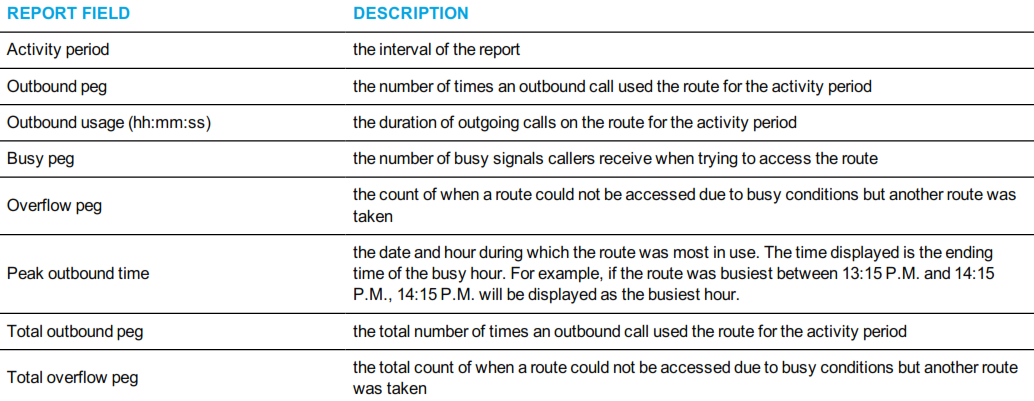

The Route Traffic by Period report provides the following information:

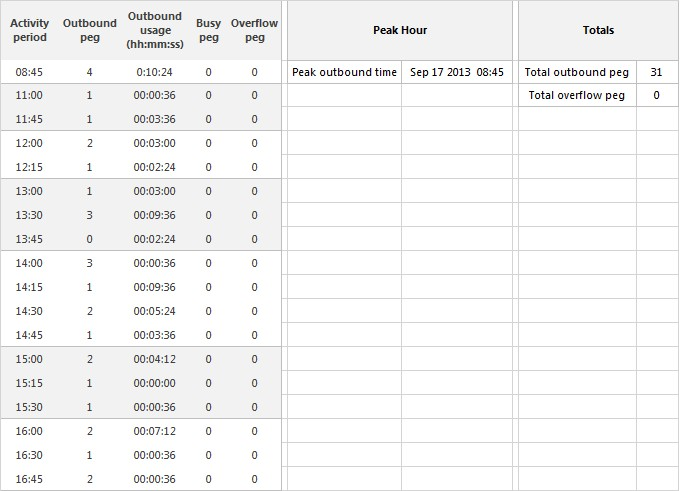

Figure 196: Route Traffic by Period
