Premium business media phones delivering  best-in-class desktop productivity for busy corporate executives and managers.



Simplicity and ease of use

The Polycom VVX 600 Series is built for executives and managers who need a  powerful, yet intuitive, expandable office phone that helps them stay connected to lead  your organization. Founded on the behavior common to smartphones and tablets, the
intuitive gesture-based, multitouch user interface of the Polycom VVX 600 Series makes navigation easy and requires minimal training. With its combined ergonomic design, Polycom® HD Voice™ quality and a large, high-resolution color, multitouch screen, the
Polycom VVX 600 Series business media phone is ideal.

Further Reading

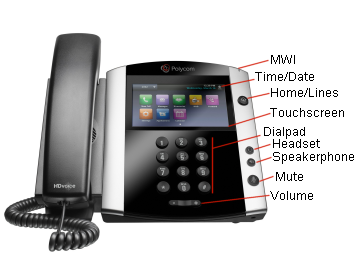

VVX 600 & 601 Hardware Feature Descriptions




Reference Number

Feature

Feature Description

1

Message Waiting IndicatorFlashes red to indicate when you have new messages.
2Time/DateProvides time, and full date
3Home KeyDisplays the Home screen from other screens and displays the Lines and Calls screen from the Home
screen.
4User InterfaceTouch screen interface allows for browsing through settings and applications
5Dial padEnables you to enter numbers, letters, and special characters. You can also use the dial pad keys to select menu items that have index numbers.
6Headset keyEnables you to place and receive calls through a headset.
7Speakerphone keyEnables you to place and receive calls using the speakerphone.
8Mute keyMutes local audio during calls and conferences.
9Volume keysAdjust the volume of the handset, headset, speaker, and ringer.


Product specifications

User interface features

  • Gesture based, multitouch capable capacitive touch-screen
  • 4.3 in LCD (480 x 272) resolution
  • 16:9 aspect ratio
  • Screen saver and digital picture frame mode
  • On-screen virtual keyboard
  • Voicemail and video mail support
  • Dual USB ports (2.0 compliant) for media and storage applications
  • Integrated Bluetooth® 2.1 EDR
  • Adjustable base height
  • Unicode UTF-8 character support.
  • Multilingual user interface including
  • Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

Call handling features

  • 16 lines (registrations)
  • Shared call/bridged line appearance
  • Busy lamp field
  • Flexible line appearance (1 or more line keys can be assigned for each line extension)
  • Distinctive incoming call treatment/call waiting
  • Call timer and call waiting
  • Call transfer, hold, divert (forward), pickup
  • Called, calling, connected party information
  • Local 3-way audio conferencing
  • 1-touch speed dial, redial
  • Remote missed call notification
  • Do not disturb function
  • Electronic hook switch capable
  • Local configurable digit map/dial plan

Network and provisioning

  • SIP protocol support
  • SDP
  • IETF SIP (RFC 3261 and companion RFCs)
  • Two-port gigabit Ethernet switch
  • - 10/100/1000Base-TX across LAN and PC ports
    - Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
    - Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
  • Manual or dynamic host configuration protocol (DHCP) network setup
  • Time and date synchronization using SNTP
  • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
  • Support for Polycom Zero Touch Provisioning
  • Provisioning and call server redundancy supported QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and Diffserv/DSCP
  • VLAN – CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
  • Network address translation support for static configuration and “Keep-Alive” SIP signaling
  • RTCP and RTP support
  • Event logging
  • Syslog
  • Hardware diagnostics
  • Status and statistics reporting
  • IPv4 and IPv6
  • TCP
  • UDP
  • DNS-SRV

Security

  • 802.1X authentication and EAPOL
  • Media encryption via SRTP
  • Transport layer security
  • Encrypted configuration files
  • Digest authentication
  • Password login
  • Support for URL syntax with password for boot server address
  • HTTPS secure provisioning
  • Support for signed software executables

Power

  • Built-in auto-sensing IEEE 802.3af Power over Ethernet (Class 4). Backwards compatibility with IEEE 802.3af.

Approvals

  • Argentina CNC
  • South Africa ICASA
  • Saudi Arabia CIT
  • India TEC
  • Japan MIC/VCCI Class B
  • Malaysia SIRIM
  • Israel MOC
  • Singapore IDA
  • Taiwan NCC*
  • Mexico NOM-121
  • FCC Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • EN55022 Class B
  • CISPR22 Class B
  • VCCI Class B
  • EN55024
  • EN61000-3-2; EN61000-3-3
  • NZ Telepermit
  • Korea KC
  • UAE TRA
  • Russia CU
  • Brazil ANATEL*
  • Australia RCM
  • ROHS compliant
  • China CCC *

*Planned future compliance
